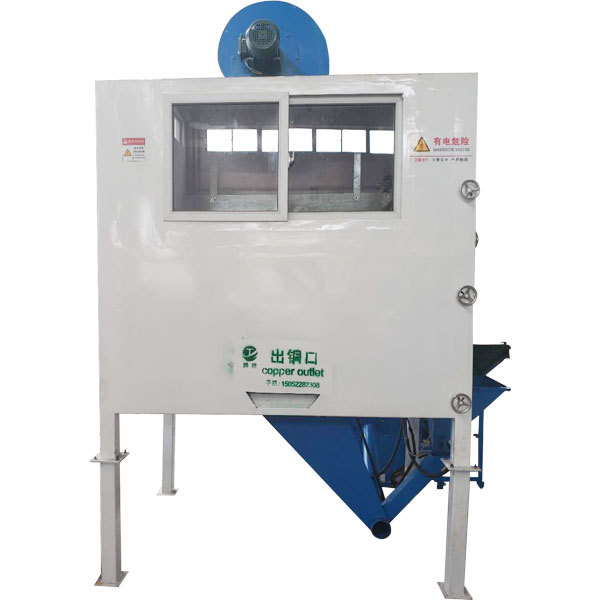

Static current separator

Static current separator

share
¥0.00
  • Detail
  • Parameters


Static description

The advantage of the new device is that the waste does not need to be dissolved by chemicals and thus does not pollute the environment.It can separate more than 99% of gold, copper, aluminum and other metals from plastic.The device can be used for the separation of aluminum and sand, conductor and non-conductor of aluminum plastic board, waste circuit board, medicine board, waste wire and cable, aluminum and sand.

Static current separator, through years of practice and theoretical analysis, obtained the best separation effect, after separation impurities can be less than 1%, that is, separation effect can be up to 99.9%, and is a complete physical separation, separation of the properties of various materials do not change, do not affect the recycling.The device first ionizes the surrounding air layer by corona discharge, and then separates metals and plastics (conductors and non-conductors) from crushed materials by using different capacitance.

Model Number

Roller Diameter(mm)

Drum length

(mm)

High Voltage(KV)

Rotate Speed

Power(kw)

output (kg)

Size(m)

TJ-1000

320

1000

0~60kv

0~500rm/min

4KW

100-150

1.38X1.75X3.5

TJ-1500

320

1500

0~80kv

0~500rm/min

4.5KW

150-200

1.38X2.3X3.5

TJ-1800

320

1800

0~80kv

0~500rm/min

4.5KW

200-300

1.38X2.65X3.5

TJ-1000-2

320

1000X2

0~90kv

0~500rm/min

5.2KW

250-350

1.38X1.75X3.9



1. Thick moving blade with high crushing power.The cutting tool is made of special steel after forging, which has a long service life.


2. The machine body is welded with high-strength steel plate, which can resist high torque and is very strong and durable.


3. Microcomputer (PC) automatic control is adopted, with startup, stop, reverse and overload automatic reverse control functions.


4. The equipment has the features of low speed, high torque, low noise and dust meeting environmental protection standards.


5. Easy to adjust, low maintenance cost and economic durability.


6. All the cutters of the tengjian copper rice machine in wuxi city, jiangsu province are produced by our company. We can design the

diameter, thickness, claws and material of the cutters according to customers' needs, so as to meet customers' demands.


Technical parameter

Processing diameter

Waste miscellaneous wire of any specification

Overall dimension(LxWxH)

4m. Wide 2m. High2.2m

Machine weight

3000kg

Main motor power

30kw

Motor Power

0.75kw

Motor Power

5.5kw

Motor Power

1.1kw

Motor Power

2.2kw

Motor Power

0.75kw

Motor Power

120kw

Motor Power

43kw

10H/Production

3000kg-4000k




Tj-a300 type 400 type 500 type 600 type 700 type shredder

My factory production of uniaxial shredding machine, the biaxial shredding machine can shred the material including but not limited to metals, plastics, waste, wood, cans, tires, plastic sheeting, braid material, waste paper, eat hutch garbage, cable, medical waste, etc., from the blade to the machine (in addition to the electronic control, speed reducer and motor) are made by teng to build their own factory production, absolutely guarantee genuine materials, please customers rest assured the choose and buy!


Price
¥0.00
